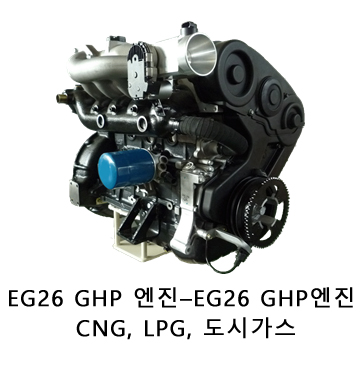

| EG26 GHP 엔진– EG26 GHP 엔진 – CNG, LPG, 도시가스 |
 |
| 형식: I4, 2.6L, NA |
| 출력: 35 kW@ 3,000 rpm (NA) |
| 효율 : Max. 37 % @ 전부하운전 |
| 적용: GHP(Gas engine driven Heat Pump) CHP(Combined Heat and Power)가스발전기 |
| |
| 4D56 가스엔진을 기반으로 GHP, CHP, 가스 발전용으로 밀러사이클, 희박연소를 적용한 고효율, 저소음엔진.
|
|
■ 엔진 제원 / Specification
|
Engine Model
|
EH26-N
|
EH23-N
|
|
Base Engine Model
|
D4BB (HMC 모델명)
|
S4QS
|
|
Engine Type
|
4 Cycle NA, OHC
|
4 Cycle NA, OHV
|
|
No. of Cyl. & Arrangement
|
4 - In Line
|
←
|
|
Displacement (cc)
|
2,607
|
2,311
|
|
Bore X Stroke (mm)
|
91.1 X 100
|
88 X 95
|
|
Rated Power (PS/rpm)
|
57 / 2,600
|
40 / 2200
|
|
Max. Torque (kg.m/rpm)
|
15.7 / 2,200
|
13.5 / 1600
|
|
Max. Thermal Efficiency (%)
|
37% (LHV)
|
35%
|
|
Fuel
|
Natural Gas Mixer
|
←
|
|
Exhaust Gas Emission
|
CO 2,800ppm↓
|
CO 2,800ppm↓
|
|
Compression Ratio
|
11.5 ~ 15
(Miller Cycle )
|
←
|
|
Noise(dB(A))
|
80
|
←
|
|
Engine Management
|
ECU
|
←
|
|
rpm Control
|
±20rpm
|
←
|
|
Cooling Method
|
Water Cooled
|
←
|
|
Rotation
|
CCW from flywheel side
|
←
|
|
Lubrication Oil Consumption
|
3 g/hr↓
|
4.5 g/hr
|

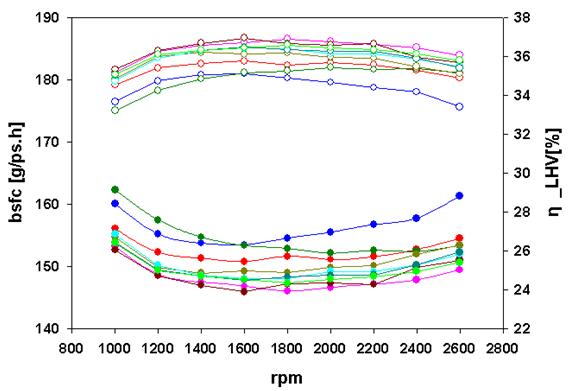

■ 출력/ Power & Torque
■ 적용 / Application GHP(Gas
engine driven Heat Pump) CHP(Combined
Heat and Power)/가스발전
|
|
|
|
|
|
 |
|
|
